DICONAL® PV - Mounting elevation AS-100-75, minimal, light, flexible
AS-100-75 Application

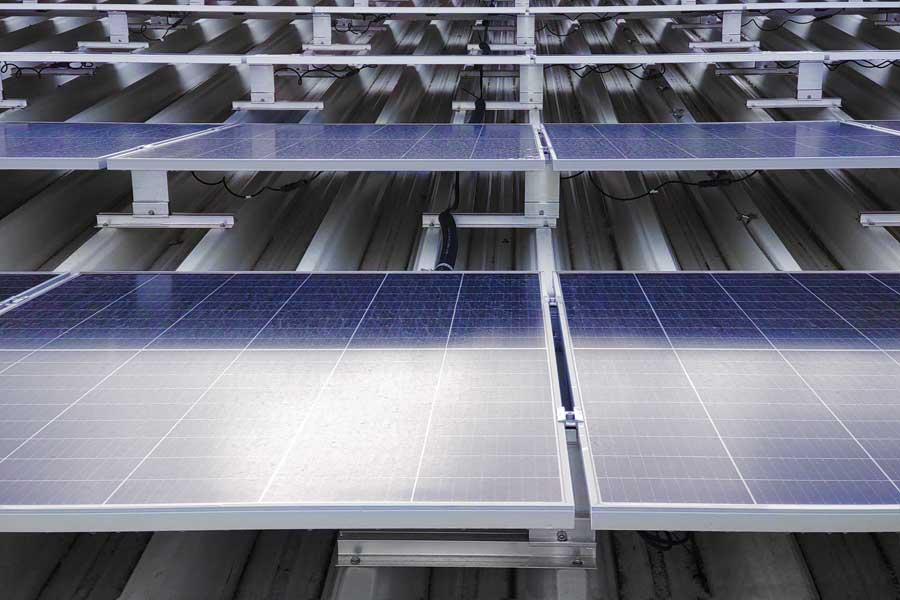

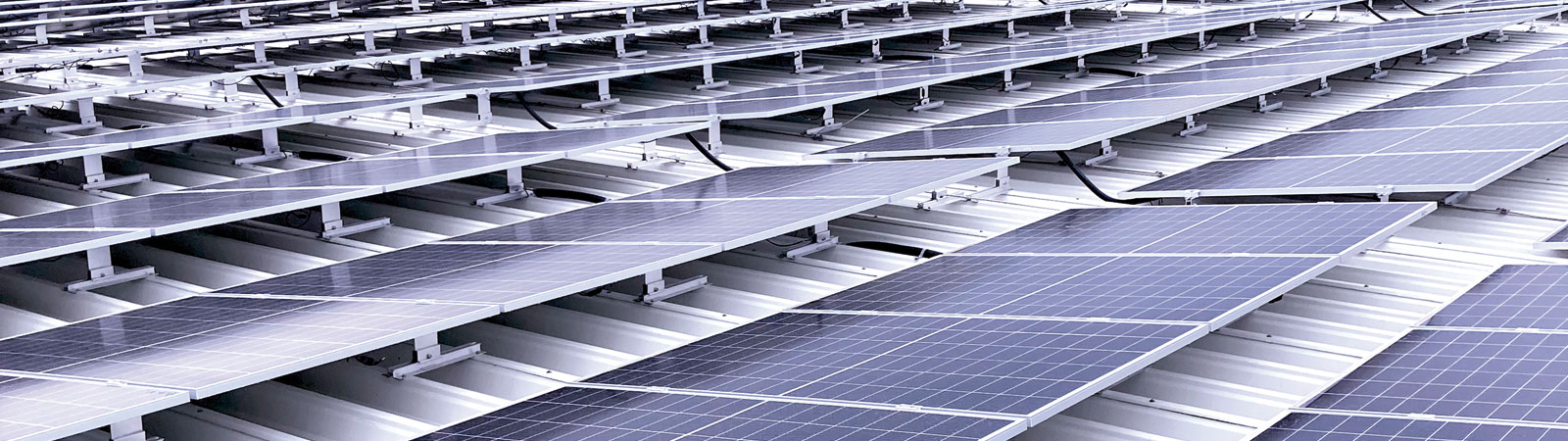

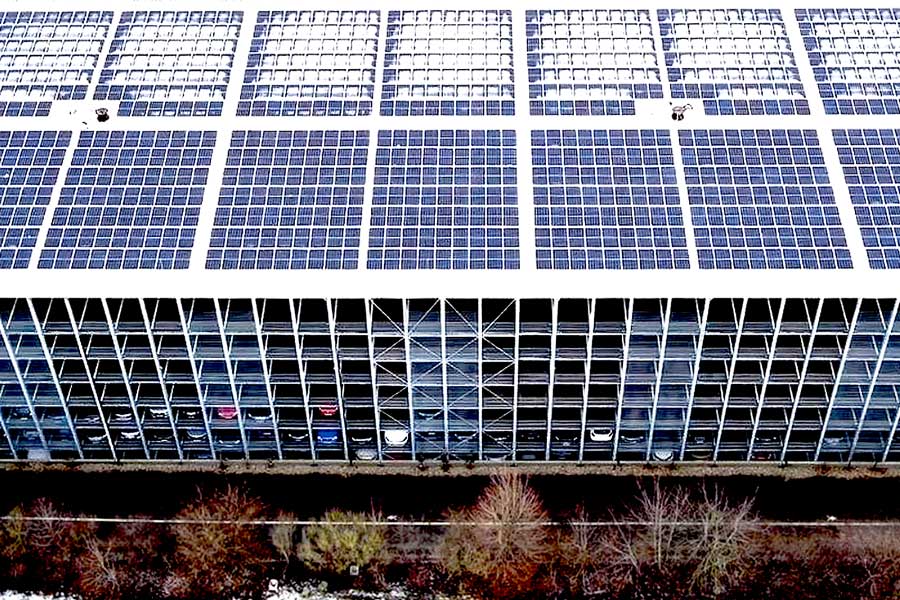

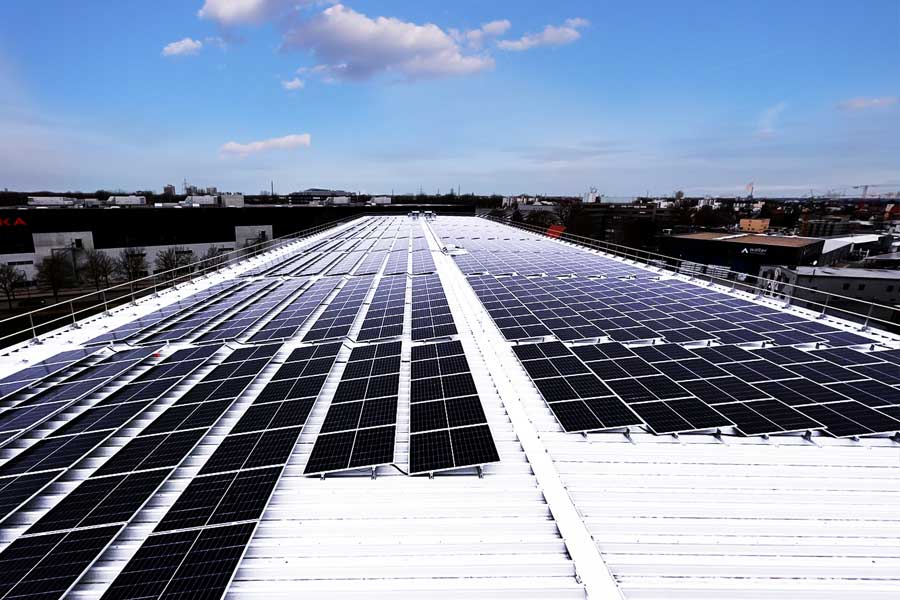

Lightweight, minimalist 7.5° elevation for industrial and warehouse roofs. Suitable for two different roof mounting systems P-30 and P-mini. And flexible in orientation thanks to a cross connector.
KV-AS cross connector Application
Cross Connector Applications
Suitable for all mounting profiles, the KV-AS cross connector offers the option of rotating the AS-100-75 elevation by 90° on all system profiles.
Dowload Documents:
- Data sheet AS-100-75 (0,6 MB) (German)
- Data sheet collection DICONAL® System complete (6 MB) (German)
- Download Page (Flyer, Data sheets, Data collection sheet, Measurement sheet, GTC (German))
- DIBt® certification Z-14.4-827 (DICONAL® German)
- DIBt® certification Z-14.4-827 (DICONAL® English)
Advantages
- Minimal material usage
- Low costs
- Minimal weight
- 100% system compatible
- Fits all mounting profiles DICONAL® P-mini, P-30, P-40 and P-80
- Cross connector KV-AS for easy 90° rotation on all mounting profiles
Technical information

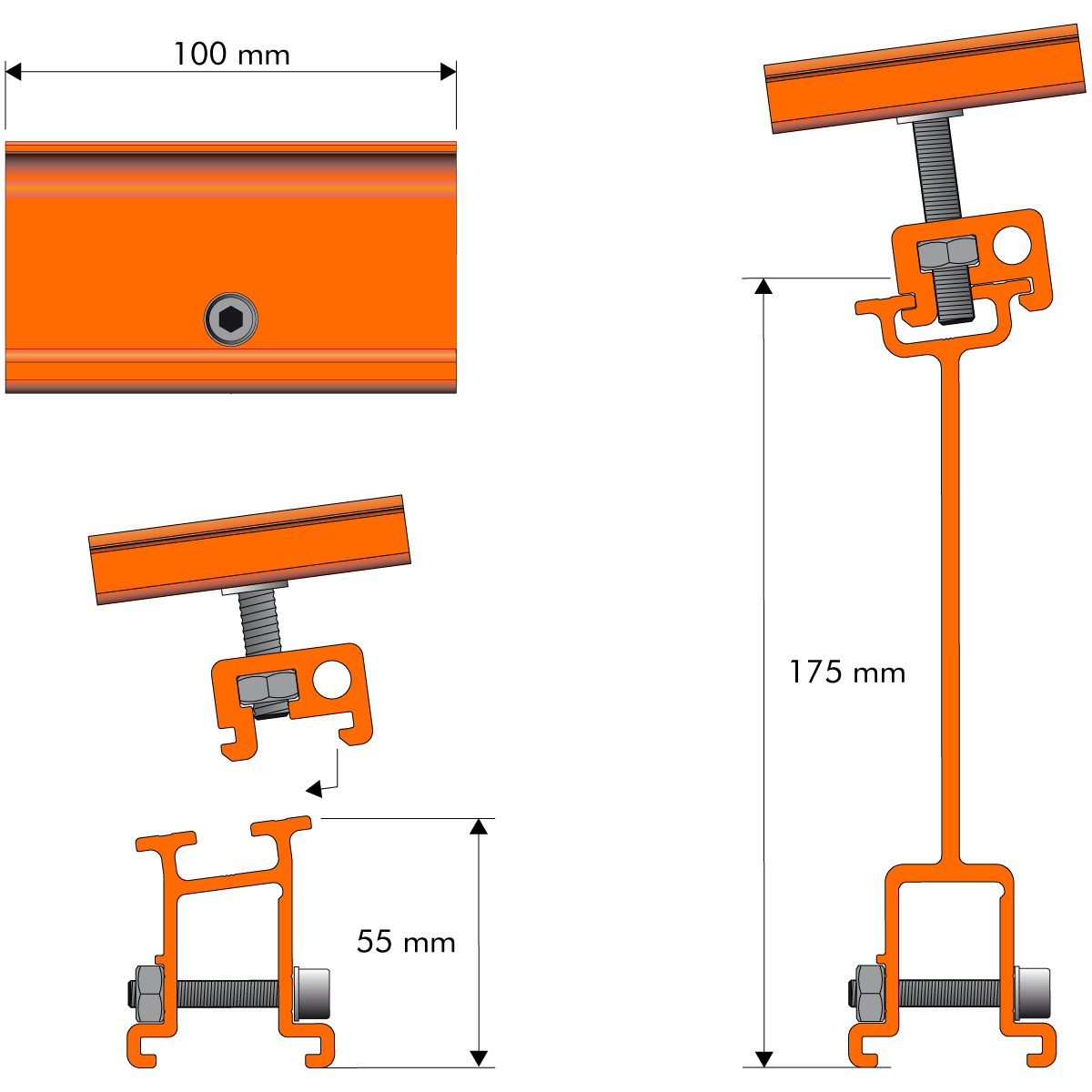

- AS-100-75 / for elevation of 7,5° consisting of two profile pieces - short for the front, long for the rear
- The 100mm width of the AS-100-75 mounting system allows flexible support positions for the modules if the bead spacing and the module widths do not match perfectly.

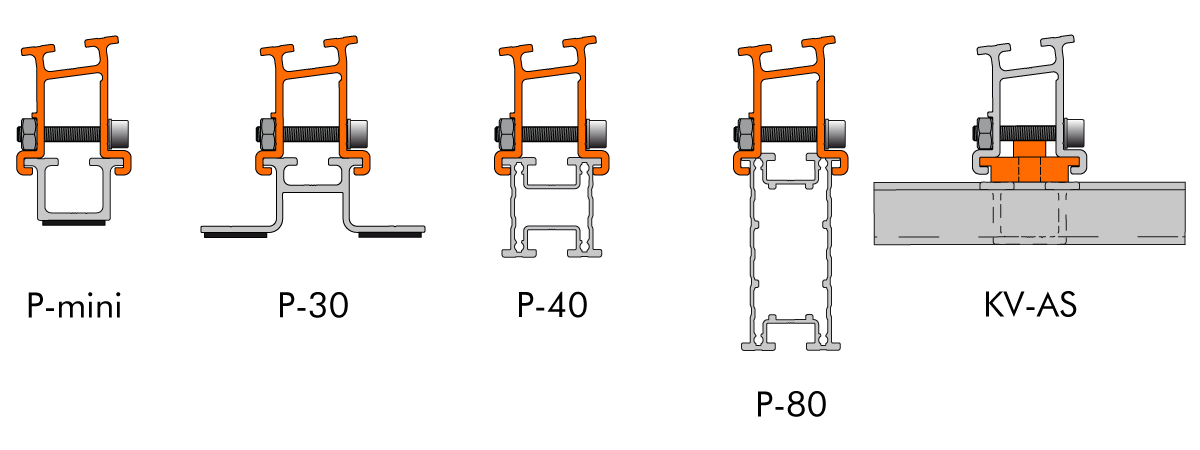

- Clamping foot compatible with all DICONAL® system profiles P-mini, P-30, P-40 und P-80
- Module terminals can be used directly
Material profiles and clamps: ENAW 6063
Material screw: V2A
Tightening torque
: 10Nm

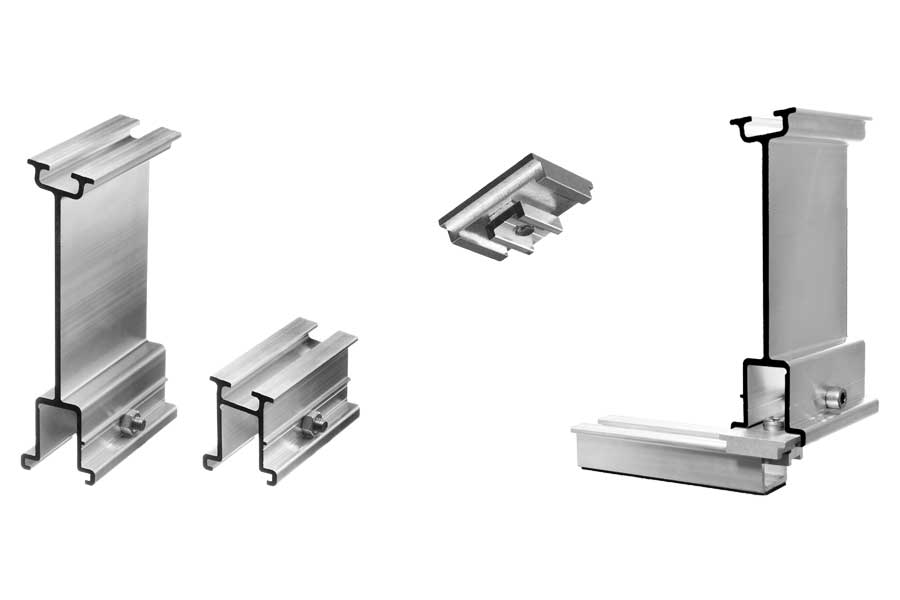

Cross connector
- The Cross connector KV-AS allows easy 90° rotation on all mounting profiles

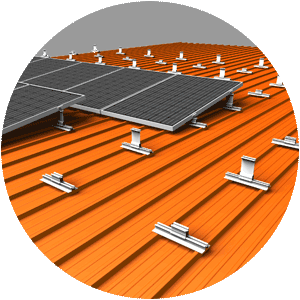

DICONAL® AS-100-75-P-30
Application

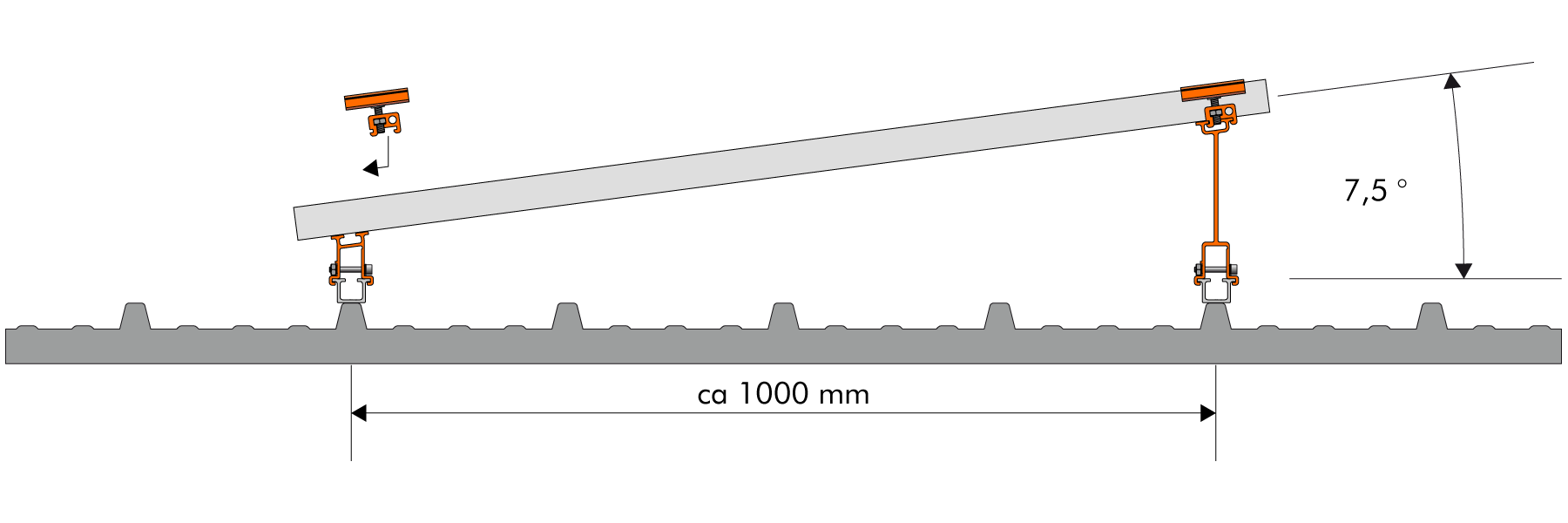

Trapezoidal sheet metal roof aligned to the eaves or ridge. Elevation angle 7.5°.
Advantages
- Minimal material usage
- Low costs
- Minimal weight
- Design and fastening the same P-30
- P-30 Short rails are mounted from high bead to high bead
- Module dimensions and trapezoidal sheet metal ribs can be flexibly coordinated.
- Cross connectors allow the elevation to be rotated 90°.
- DICONAL® System profiles are compatible with all other system components, especially the module terminals.
- P-30 Available in various dimensions

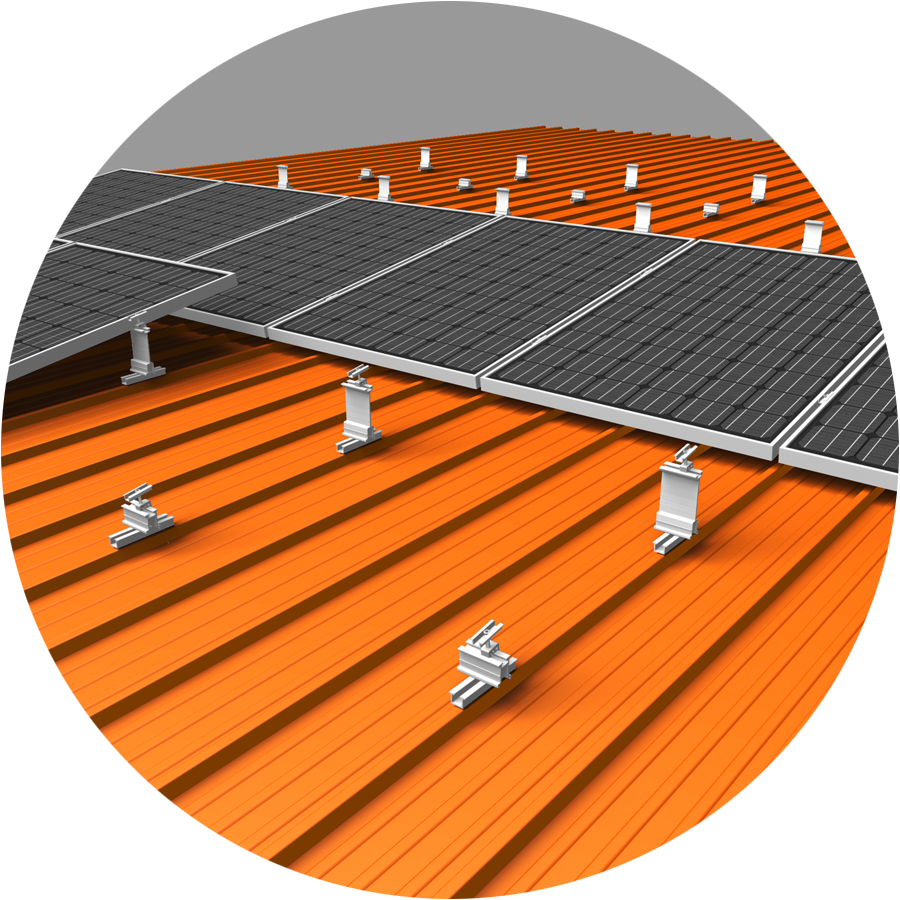

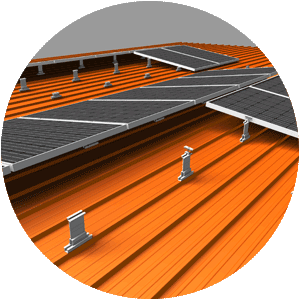

DICONAL® AS-100-75-mini-125
Application
Trapezoidal sheet metal roof aligned to the verge. Elevation angle 7.5°.
Advantages
- Minimal material usage
- Low cost
- Minimal weight
- Design and fastening identical to the P-mini 125 system
- Cross connectors allow 90° rotation of the elevation.
- DICONAL® system profiles are compatible with all other system components, especially the module clamps.
- P-mini Available in various dimensions
Installation tools
6mm hexagon socket
Installation
- Roof layout according to technical specifications.
- P-30 Alignment to the eaves or ridge
- P-mini Alignment to the verge
- Fasten P-30 and P-mini with rivets or screws
- AS-100-75 Insert and align the support brackets at the front and rear of the base profile.
- Secure AS-100-75
- Modules are attached using MMK and MEK module clamps..
Practical tip module positioning
The module clamp should always be mounted centrally on the 100 mm wide support. This results in a contact areaⓂof 40 mm for the two modules on the left and right. Important! The contact areaⓂmust be at least 10 mm wide.
DICONAL® AS-100-75
Elevation
The minimalist DICONAL® - AS-100-75 elevation system offers the same functionality as complex elevations with minimal material usage. The prerequisite for use is fastening to the substructure.
Flat roof / pitched roof
DICONAL® Flat roof elevation AS-100-75 can also be used on light pitched roofs.
Roof connection
P-30 or P-mini profile sections are attached to the trapezoidal sheeting, forming a stable base for the supports. In this example, the P-30 profiles allow for flexible adjustment. Coordinating the trapezoidal sheeting and module dimensions is significantly simplified.
Planning
The DICONAL® planning software allows for quick, easy and reliable planning taking into account the local conditions, the roof surface and the modules used, and a project report provides the end customer with all relevant data in project documentation.
