Fast, easy, fixed !

DICONAL^® is the easy and rapid pv-mounting system. DICONAL^® offers the best mounting solution for all sorts of applications and roofs. Pitched roof, flat roof, barrel roof, garden PV mounting or individual special solutions.

DICONAL^® offers the perfect mounting product for every type of installation. For pantiled- and slate roofs, for sheet metal roofs such as trapezoidal and corrugated sheetings, elevation systems for flat roofs. Thanks to the patented connection technology the products are a 100% system compatibel, robust with checked security and safety standards and approval by DIBt^® .

Easy, the layout

DICONAL^® Planningtool - Fast, Easy, Save ! Our planning application allows the complete Layout of a photovoltaik system in only approx. 10min. projectdata, selection of the components, layout, electric and project documentation.

Fast, the mounting

The nucleus of the DICONAL^® System is formed by the patented module clamp with three decisive advantages - it is easy, fast and offers secure hold. In 2009 the first installations showed that the time used for the mounting of the modules could be reduced by 63%.

Fixed and save!

Fixed = robust, secure and sustainable. The DICONAL^® mounting system offers maximum security for all applications. The system components are perfectly coordinated, high quality and approved by DIBt^®. The patented connection technology with one clamp, one profile cross-section and one connector guarantee that DICONAL^® Products are 100% system compatible. Repurchase, repair and repowering are possible at any time.

DICONAL^® at Intersolar 2024

The trade show is over - very satisfied we want to thank all visitors for their interest, inspiring talks and are happy if we can provide a professional, helpfull tool with our PV-Montagesystem DICONAL^® and the new released products:

• Mountingprofile P-120 - Span up to 4000 mm possible
• System for Garden PV
• Metal roof tile fo replace Finkenberger, Frankfurter tiles
  in cooperation with Loch.
• Mountingsystem for Kalzip roof in cooperation with
• Barrel roof and rounded roof joint suitable for all system profiles

Wir freuen uns wenn wir Sie auch 2025 begrüßen dürfen, ihr DICONAL® PV-Team

New products !

Metal roof tiles by

To protect roof tiles at the place of a roof hook you can replace the original tiles with metal roof tiles produced by LOCH .



Kalzip^® Roof PV-Mounting with DIBt^® certification

In cooperation with we developed a PV-Mountingsolutiion for Kalzip^® roofs with DIBt certifications.

Current topics

		Lightning protection tested flatroof mountingsystem
		Clamp with grounding pin
		Permanently system compatibel
		< 3 kg CO2 - per used kg Aluminium possible

Applications

• Pitched



• Flat



• Barrel roof

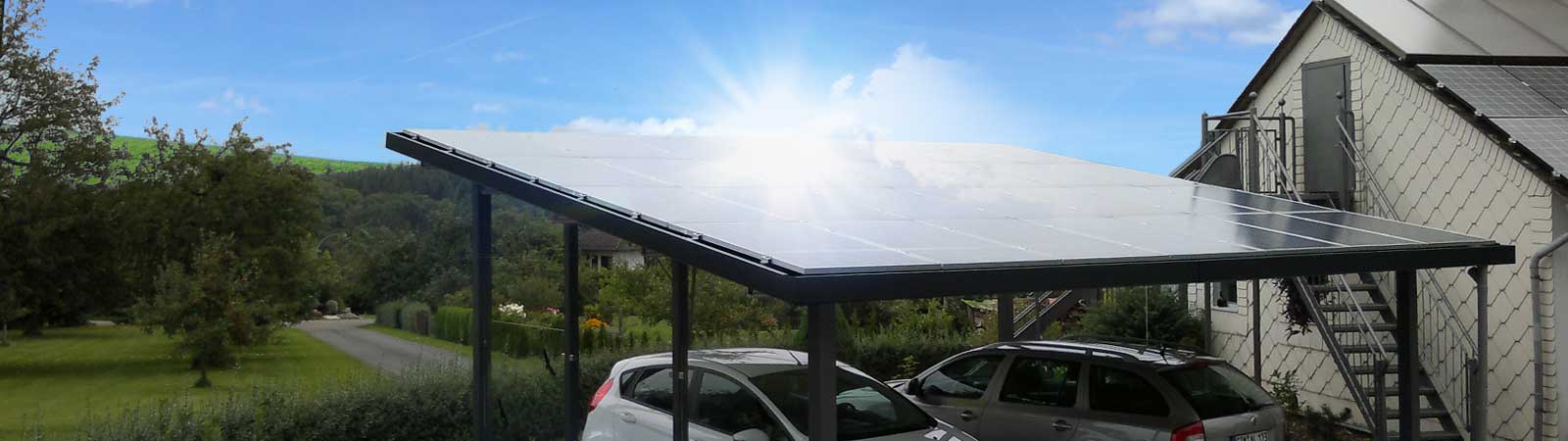

• Special



• Garden



For all photovoltaik applications DICONAL^® System offers the machting mounting solution for pitched roof, flat roof and special solutions.

Roofing

• Pantiled



• Sheet



• Seam



• Foil



Depending on the type of roofing DICONAL^® offers the suitable roof connection or flat-lying mounting systems.

Mounting products

• Mounts



• Profiles



• Clamps



• Elevation



• Joint



The elements of the DICONAL^® PV-mounting systems are pre mounted. Module clamps and mounting profiles are 100% system compatibel.

Roof hook DHP

Short profile sections P-30

P-mini

Sliding support GH

Flatroof low ballast FD-OW (east-west)

Flatroof low ballast FD-S (south)

Elevation AS-1100

AS-100-75

Hanger bolts S-10

Kalzip^® clamp

PG-55 Profile joint

Standing seam clamp

GA Garden-PV
