P-30 Short tracks for trapezoidal sheet metal roofs PV-Mounting

P-30 Application
on walkable trapezoidal sheet metal roofs with sheet metal outer skin.

Requirement - Trapezoidal sheet metal with a minimum sheet thickness of 0,5 mm steel / 1,00 mm aluminum
Material P-30: ENAW 6063 permissible tensile load of the material P-30 Profile 1,00 KN

Dowload Documents:

• Data sheet P-30 (0,6 MB) (English)
• Data sheet collection DICONAL^® System complete (6 MB) (German)

• Download Page (Flyer, Data sheets, Data collection sheet, Measurement sheet, GTC (German))
• DIBt^® certification Z-14.4-827 (DICONAL^® German)
• DIBt^® certification Z-14.4-827 (DICONAL^® English)

P-30 Advantages

• Good static load distribution
• This type of installation reduces the suction effect on the outer skin of the roof covering by the weight of the PV system.
• Fastened with thin sheet screws or blind rivets approved by the building inspectorate.
• Only two components required for installation.
• No need to transport long profile bars -
• Coordinated with the bead spacing of the profile sheets.
• The profile sections are pre-drilled and sealed with sealing tape.

Technical information

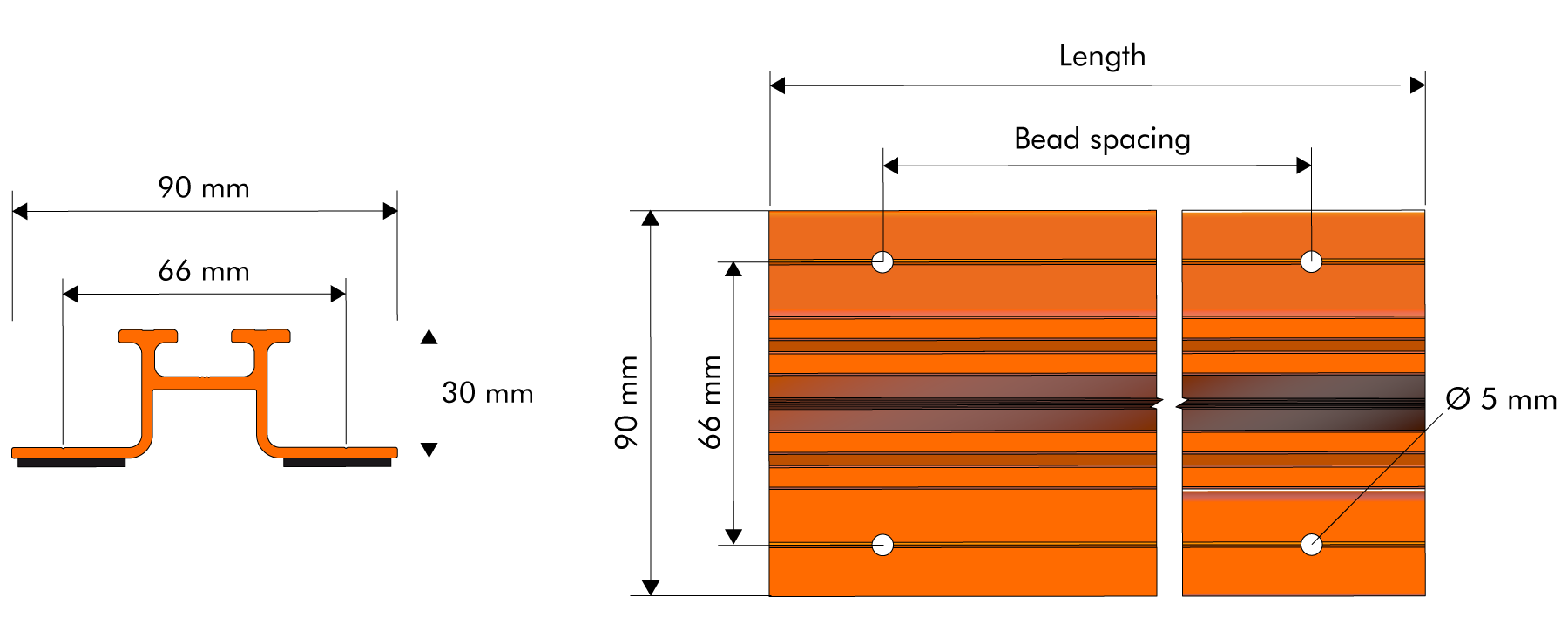

• Profile cross-section 90 x 30 mm
• EPDM seal included
• P-30 are pre-drilled
• Hole spacing 66 mm
• Various lengths are available depending on the bead spacing
• Fastened directly with thin sheet screws without pre-drilling
• Alternatively with blind rivets / pre-drilling is required in this case

Mounting tools
Drill / Drill bit 5.0 mm / Riveting tool / Alternative - Screw thin sheet SW 8

Mounting

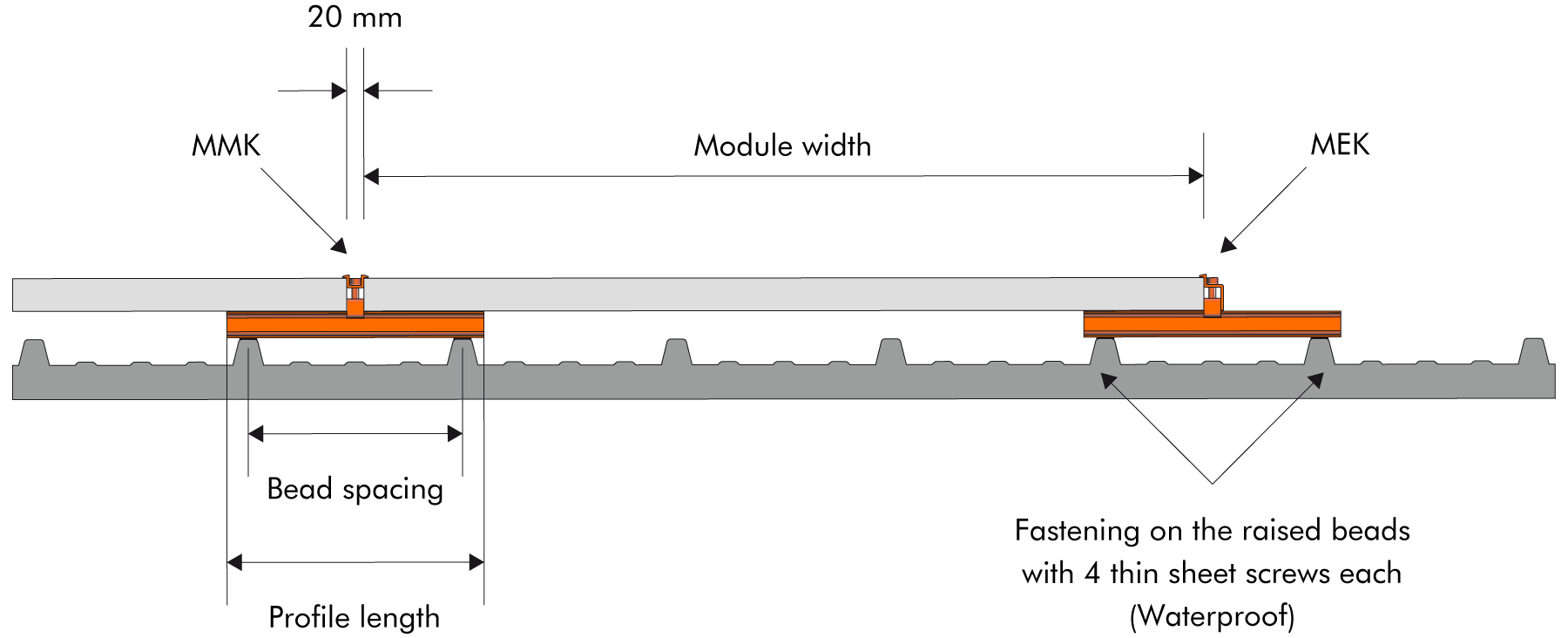

1. Roof layout depends on module dimensions
2. Align the first row using a chalk line.
3. P-30 Place the holder in position, pre-drill with sheet metal drill Ø 5,00 mm and fix it with 4 blind rivets. Alternatively, the fastening can also be carried out with the thin sheet screw without pre-drilling.
4. Place the next rows using a wooden template. After 10 rows, check the direction again with a string.
5. Module clamps MMK + MEK can be used directly into the P-30 profiles

Elevation AS-100-75

1. The elevation AS-100-75 can easily be inserted and fixed
2. With the crossconnector KV-AS the elevation can be rotated by 90°

P-30 Short track examples

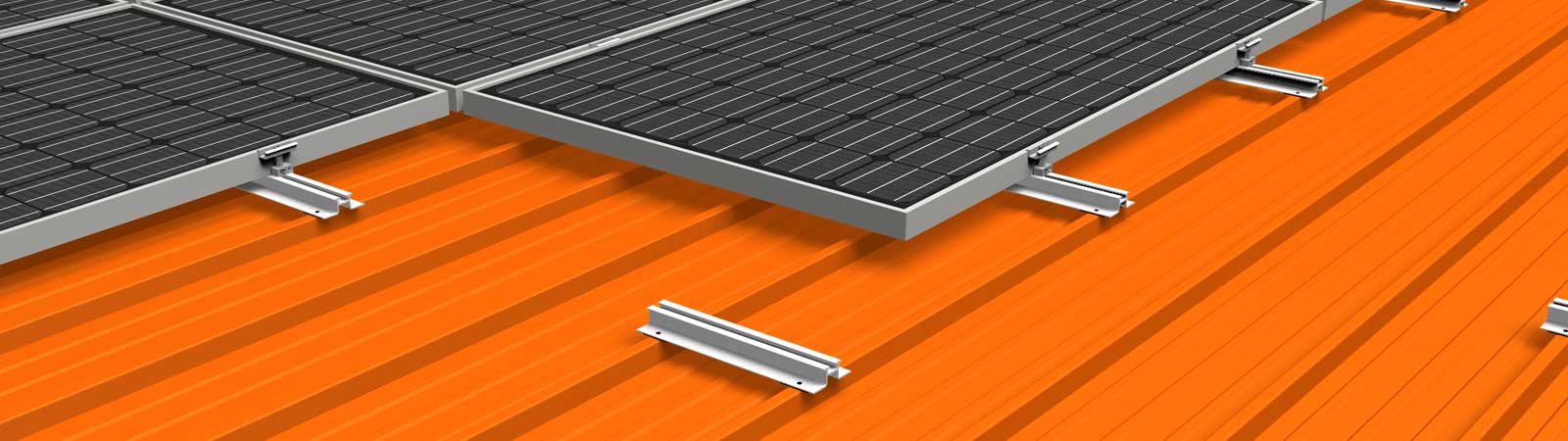

Example 1

DICONAL^® P-30 Short tracks.

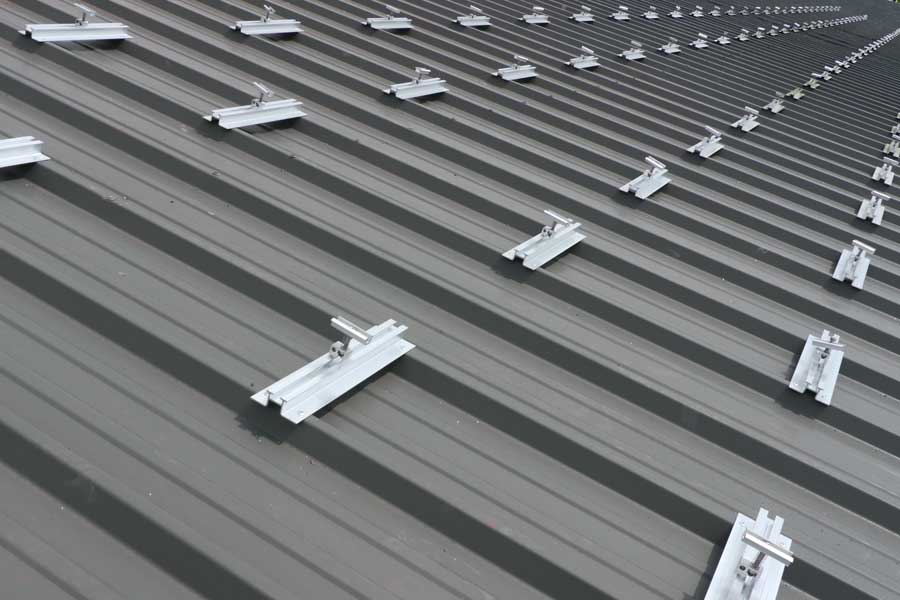

Example 2

DICONAL^® P-30 Short tracks.

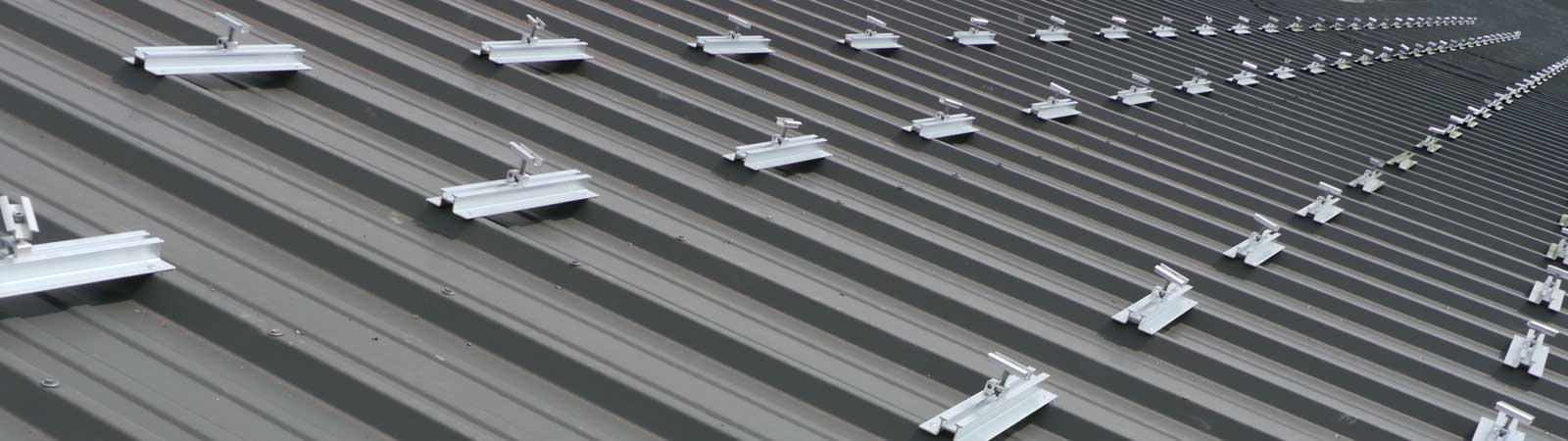

Example 3

DICONAL^® P-30 Short tracks with AS-100-75 elevation.

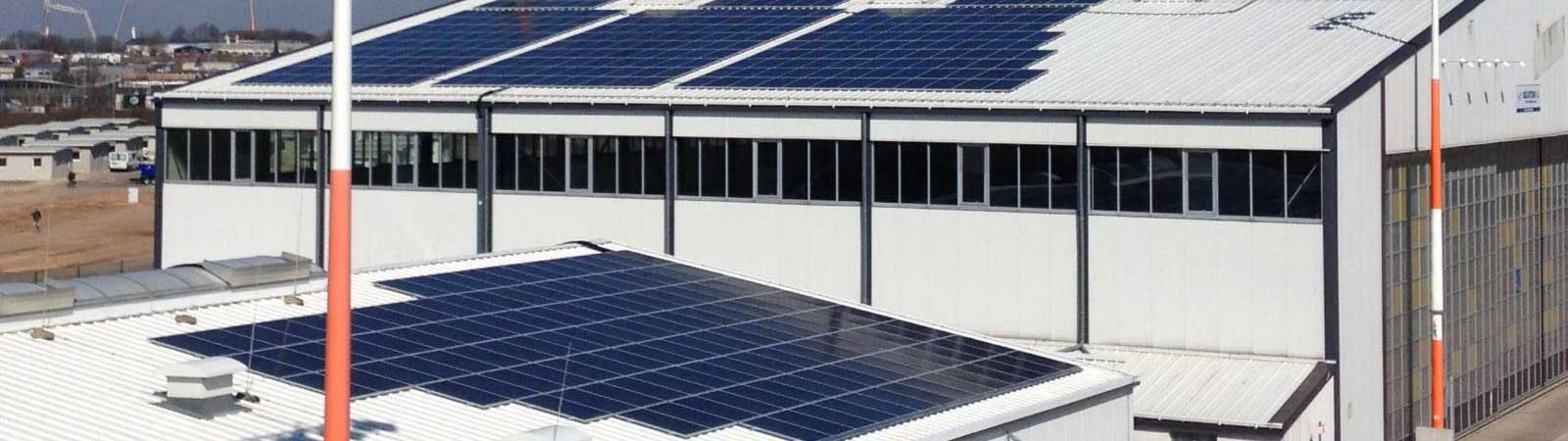

Example 4

DICONAL^® P-30 Short tracks.

Trapezoidal sheet alternative mounting solutions

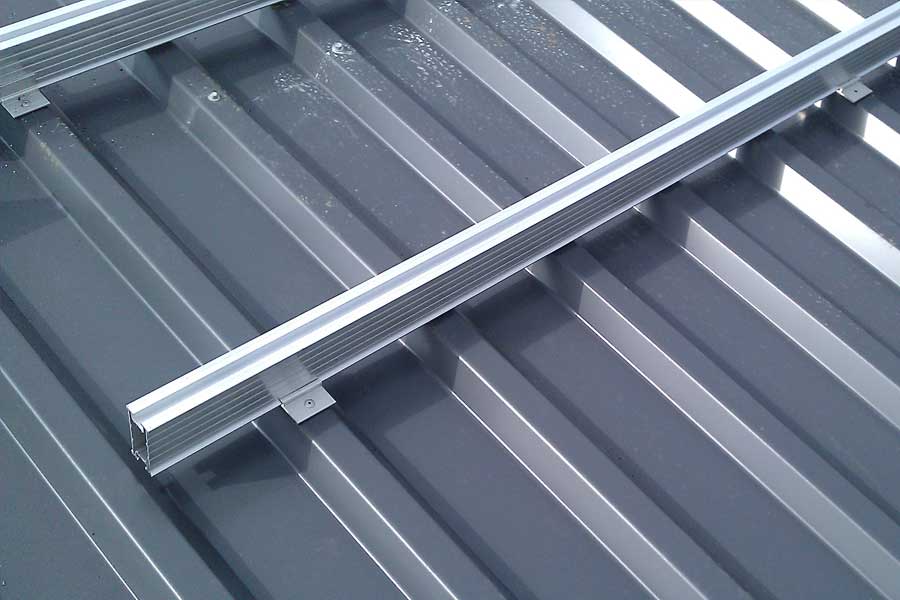

Sliding support GH

DICONAL^® Sliging support GH für nicht begehbare Trapezblechdächer.

Standing seam

Clamps for standing seam roofs with premounted connection to the DICONAL^® PV mounting system.

Kalzip^® clamp

For aluminum standing seam roofs, the combination of profile interface and Kalzip^® clamp is the perfect solution for framed modules.

Hanger bolts

DICONAL^® hanger bolts serve as fastening in the roof substructure when the roof covering does not provide sufficient stability.
